Type V20

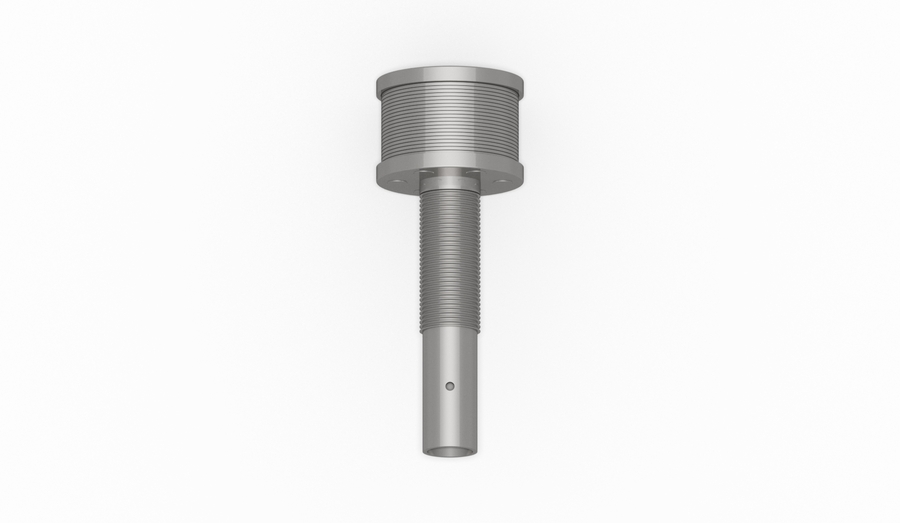

The Type V20 nozzle features a cylindrical head constructed from wound and contact-welded triangular profile wire, delivering exceptional strength and precision. Available in various stainless steel materials, it offers outstanding durability and corrosion resistance for demanding filtration applications.
Features
Slot Size by Colour
0.2mm Slot Size - Ivory 0.3mm Slot Size - Green
0.35mm Slot Size - White 0.5mm Slot Size - Grey
0.7mm Slot Size - Yellow 0.8mm Slot Size - Blue
1.0mm Slot Size - Black 1.5mm Slot Size - Orange -
2.0mm Slot Size - Green
Specifications
Technical Specifications – Type V20 Filter Nozzle
| Specification | Detail |
|---|---|
| Manufacturer | KSH Germany |
| Model | Type V20 |
| Material | V4A (316L stainless steel) |
| Design | Precision-machined slotted filter nozzle with external thread and hexagonal head |
| Slot Size / Area | 0.2 mm slots = ≈ 5.65 cm² open area |
| Connection Thread (ØA) | M20 × 1.5 |
| Thread Length (L1) | 40 mm (+5 mm tolerance) |
| Shaft Length (L2) | 80 mm, 100 mm (standard options) |
| Head Diameter | Ø 45 mm / 48.3 mm (max) |
| Outlet Diameter (ØB) | 16 mm (≈ 2.0 cm² flow area) |
| Flow Rate (Δp ≈ 0.1 bar) | Up to ≈ 3 m³/h (see KSH flow chart) |
| Installation Type | Direct screw-in mount through nozzle base with locknut (MUVA) |
| Accessory Compatibility | Type MUVA locking nut (M20 × 1.5) |
| Exclusive NZ Distributor | Absorb It Ltd |
