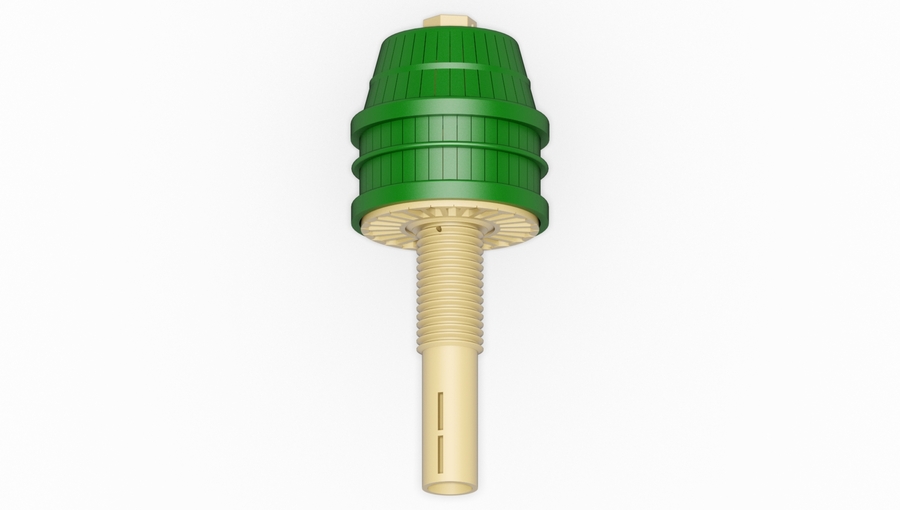

Type K2
The Type K2 nozzle combines the strengths of the C1 and K1 designs in a hybrid configuration. Its cylindrical lower section produces a horizontal jet effect for even flow, while the conical upper section absorbs operating forces and promotes upward distribution of the regeneration agent for superior cleaning efficiency.
Features
Slot Size by Colour
0.2mm Slot Size - Ivory 0.3mm Slot Size - Green
0.35mm Slot Size - White 0.5mm Slot Size - Grey
0.7mm Slot Size - Yellow 0.8mm Slot Size - Blue
1.0mm Slot Size - Black 1.5mm Slot Size - Orange -
2.0mm Slot Size - Green
Specifications
Technical Specifications – Type K2 Filter Nozzle
| Specification | Detail |
|---|---|
| Manufacturer | KSH Germany |
| Model | Type K2 |
| Design | Slotted filter nozzle with external thread connection |
| Slot Sizes | 0.2 mm / 0.35 mm |
| Slot Area | 3.63 cm² (0.2 mm) / 6.35 cm² (0.35 mm) |
| Connection Threads | M30 × 3.5 / G 3/4″ / M24 |
| Thread Diameter (ØA) | 32 mm / 26.5 mm / 24 mm (dep. on model) |
| Thread Length (L1) | 25 mm / 45 mm |
| Shaft Length (L2) | 80 mm, 110 mm, 140 mm |
| Head Diameter (Ø71) | 71 mm |
| Wrench Size | SW17 |
| Outlet Diameter (ØB) | 21 mm (3.4 cm² flow area) / 16 mm (2.0 cm² flow area) |
| Operating Range | Flow up to ≈ 3 m³/h at 0.1 bar Δp |
| Installation Type | Direct screw-in mounting through nozzle base |
| Material | Polypropylene (PP) or PVDF (dep. on application) |
| Compatible Model | KR2 (Filter nozzle variant with reduced outlet Ø) |
| Exclusive NZ Distributor | Absorb It Ltd |
