Type P

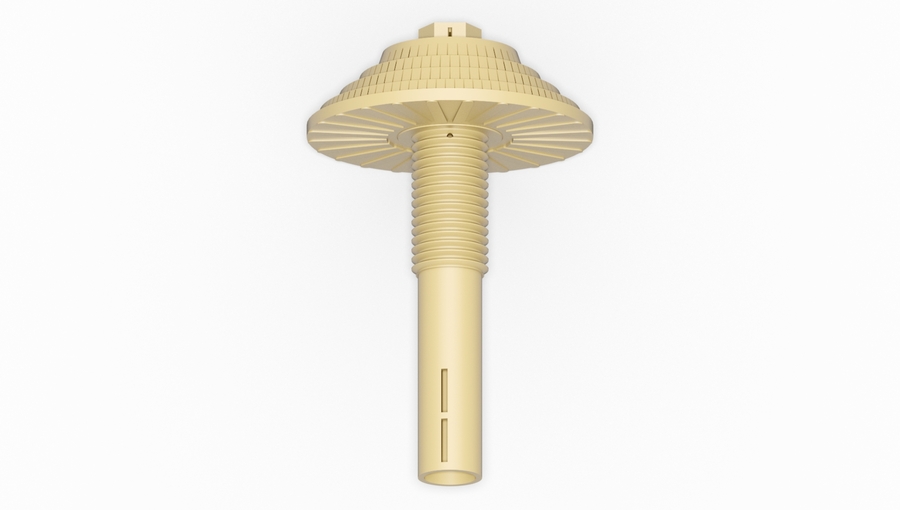

The Type P nozzle features a 90 mm outer diameter that delivers an exceptionally large extraction area while maintaining a low installation height. This makes it ideal for compact filtration systems requiring high efficiency and reliable flow performance.
Features
Slot Size by Colour
0.2mm Slot Size - Ivory 0.3mm Slot Size - Green
0.35mm Slot Size - White 0.5mm Slot Size - Grey
0.7mm Slot Size - Yellow 0.8mm Slot Size - Blue
1.0mm Slot Size - Black 1.5mm Slot Size - Orange -
2.0mm Slot Size - Green
Specifications
Technical Specifications – Type P Filter Nozzle
| Specification | Detail |
|---|---|
| Manufacturer | KSH Germany |
| Model | Type P |
| Design | Slotted filter nozzle with external thread connection |
| Slot Sizes | 0.2 mm |
| Slot Area | ≈ 3.0 cm² |
| Connection Threads (ØA) | 1½″ WW (32 mm), G 3/4″ (26.5 mm), 1″ WW (25.4 mm), M24 (24 mm) |
| Thread Length (L1) | 25 mm / 45 mm (+5 mm tolerance) |
| Shaft Length (L2) | 80 mm, 110 mm, 140 mm |
| Head Diameter | 90 mm |
| Wrench Size | SW17 |
| Outlet Diameter (ØB) | 16 mm (≈ 2.0 cm² flow area) / 21 mm (≈ 3.4 cm² flow area) |
| Flow Capacity | Up to ≈ 3 m³/h at 0.1 bar Δp |
| Installation Type | Direct screw-in mounting through nozzle base |
| Material | Polypropylene (PP) or PVDF (depending on application) |
| Compatible Accessories | Type PKU and PKO float-assisted nozzles for backwash distribution |
| Exclusive NZ Distributor | Absorb It Ltd |
