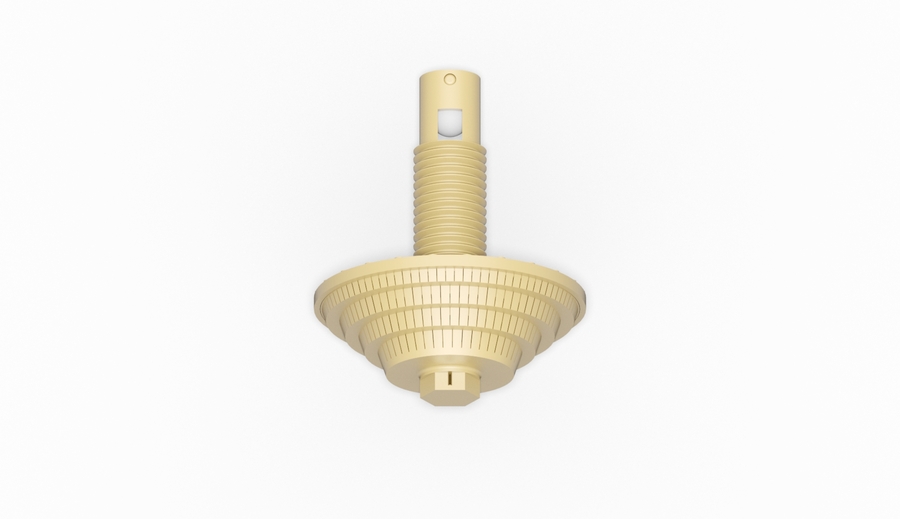

Type PKO
Manufactured by KSH Germany, the Type PKO Filter Nozzle features a sinking body within the air-cushion tube to regulate flow during backwashing and ensure even regeneration agent distribution. Designed for ion-exchange and fluidized-bed systems, it’s supplied in New Zealand exclusively by Absorb NZ.
Features
Slot Size by Colour
0.2mm Slot Size - Ivory 0.3mm Slot Size - Green
0.35mm Slot Size - White 0.5mm Slot Size - Grey
0.7mm Slot Size - Yellow 0.8mm Slot Size - Blue
1.0mm Slot Size - Black 1.5mm Slot Size - Orange -
2.0mm Slot Size - Green
Specifications
Technical Specifications – Type PKO Filter Nozzle
| Specification | Detail |
|---|---|
| Manufacturer | KSH Germany |
| Model | Type PKO |
| Design | Filter nozzle with internal sinking body for controlled backwash from above the nozzle base |
| Function | During backwashing, the sinking body restricts flow to create counterpressure for even regenerant distribution; it opens freely in the filtration direction |
| Slot Size / Area | 0.2 mm = 3.0 cm² |
| Thread Type (ØA) | M24 |
| Thread Diameter (ØA) | 24 mm |
| Thread Length (L1) | 45 mm / 50 mm (+5 mm tolerance) |
| Head Diameter | Ø 90 mm |
| Wrench Size | SW17 |
| Outlet Diameter (ØB) | 16 mm (≈ 2.0 cm² flow area) |
| Flow Capacity (Δp ≈ 0.1 bar) | ≈ 2.5 – 3.0 m³/h (ρ = 1.4 g/cm³, per KSH flow chart) |
| Material | Polypropylene (PP) or PVDF (depending on application) |
| Installation | Direct screw-in mounting through nozzle base |
| Application | Used in ion-exchange systems with fluidized-bed regeneration and in filter backwash systems |
| Exclusive NZ Distributor | Absorb It Ltd |
