Type V10

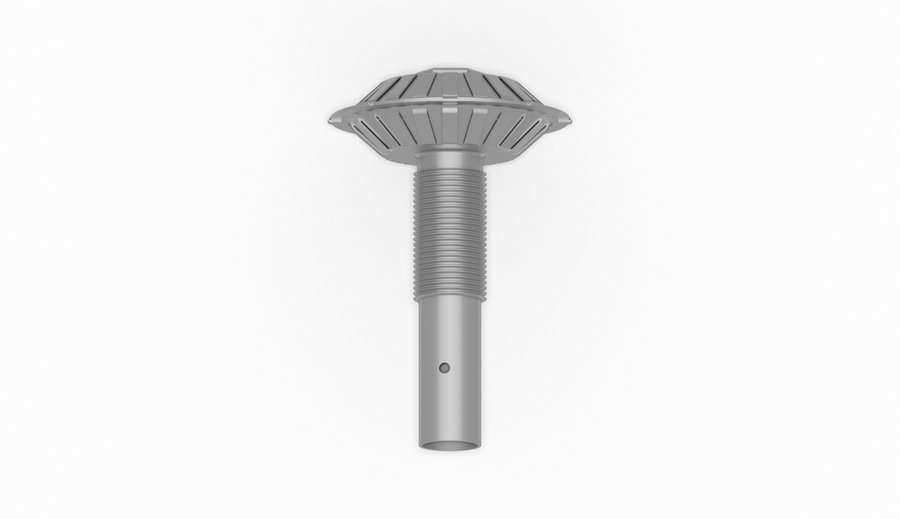

The Type V10 nozzle features precision-formed slots that create an optimal backwash pattern, actively guiding the medium toward the nozzle base. This intelligent design ensures efficient cleaning performance and consistent flow characteristics across filtration systems.
Features
Slot Size by Colour
0.2mm Slot Size - Ivory 0.3mm Slot Size - Green
0.35mm Slot Size - White 0.5mm Slot Size - Grey
0.7mm Slot Size - Yellow 0.8mm Slot Size - Blue
1.0mm Slot Size - Black 1.5mm Slot Size - Orange -
2.0mm Slot Size - Green
Specifications
Technical Specifications – Type V10 Filter Nozzle
| Specification | Detail |
|---|---|
| Manufacturer | KSH Germany |
| Model | Type V10 |
| Design | Slotted stainless-steel filter nozzle with M20 × 1.5 external thread and hexagonal head (SW17) |
| Material | V4A / AISI 316L stainless steel |
| Slot Sizes | 0.2 mm (1.68 cm²) / 0.4 mm (3.52 cm²) |
| Connection Thread (ØA) | M20 × 1.5 |
| Thread Length (L1) | 35 mm (+5 / −5 mm tolerance) |
| Shaft Length (L2) | 80 mm / 100 mm / custom lengths available |
| Head Diameter | Ø 66 mm / Hex SW17 |
| Neck Diameter | Ø 33 mm |
| Outlet Diameter (ØB) | 16 mm (≈ 2.0 cm² flow area) |
| Flow Capacity (Δp ≈ 0.1 bar) | ≈ 3 m³/h at 0.1 bar pressure drop |
