Type D

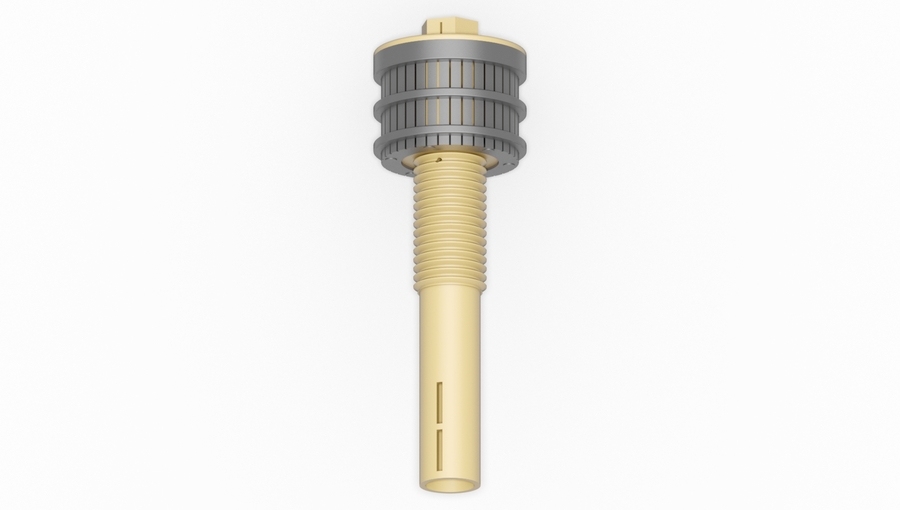

The Type D nozzle features a cylindrical slotted design ideal for large sand filter systems. Its integrated residual drainage system prevents dead zones at the base of the filter, while the precisely arranged slots deliver an even horizontal backwash pattern for optimal cleaning performance.
Features
Slot Size by Colour
0.2mm Slot Size - Ivory 0.3mm Slot Size - Green
0.35mm Slot Size - White 0.5mm Slot Size - Grey
0.7mm Slot Size - Yellow 0.8mm Slot Size - Blue
1.0mm Slot Size - Black 1.5mm Slot Size - Orange -
2.0mm Slot Size - Green
