Type R2P

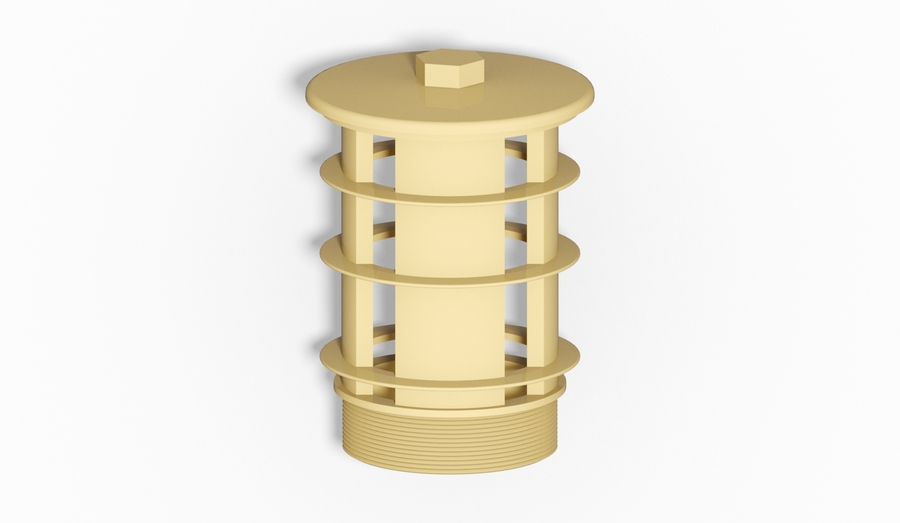

The Type R2P Baffle Plate, manufactured by KSH Germany, is based on the R2 filter nozzle and is designed to sprinkle and evenly distribute the inflowing medium in the upper section of the filter. This precision-engineered plate enhances filtration efficiency and flow uniformity. Absorb NZ is the exclusive New Zealand distributor of genuine KSH filtration components.
Features
Slot Size by Colour
- crop_square 0.2mm Slot Size - Ivory
- crop_square 0.3mm Slot Size - Green
- crop_square 0.35mm Slot Size - White
- crop_square 0.5mm Slot Size - Grey
- crop_square 0.7mm Slot Size - Yellow
- crop_square 0.8mm Slot Size - Blue
- crop_square 1.0mm Slot Size - Black
- crop_square 1.5mm Slot Size - Orange
- crop_square 2.0mm Slot Size - Green
