Type SD6

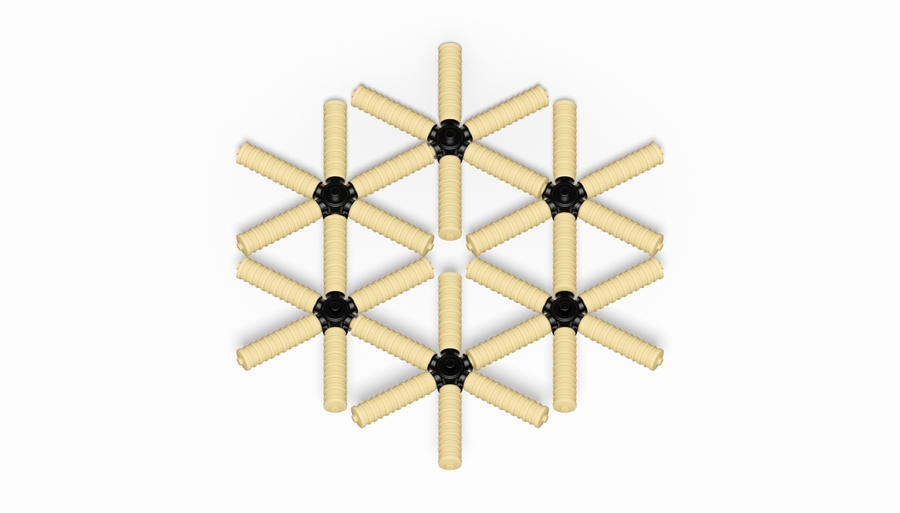

The Type SD6 Drainage System, manufactured by KSH Germany, comprises six MSG6 star centerpieces joined by Type A filter arms. The length of the arms and the pitch diameter of the star arrangement can be adjusted to match the desired overall system diameter, providing a flexible and efficient drainage configuration. Absorb NZ is the exclusive New Zealand distributor of KSH filtration and drainage systems.
Features
Slot Size by Colour
- crop_square 0.2mm Slot Size - Ivory
- crop_square 0.3mm Slot Size - Green
- crop_square 0.35mm Slot Size - White
- crop_square 0.5mm Slot Size - Grey
- crop_square 0.7mm Slot Size - Yellow
- crop_square 0.8mm Slot Size - Blue
- crop_square 1.0mm Slot Size - Black
- crop_square 1.5mm Slot Size - Orange
- crop_square 2.0mm Slot Size - Green
