Type SK8F

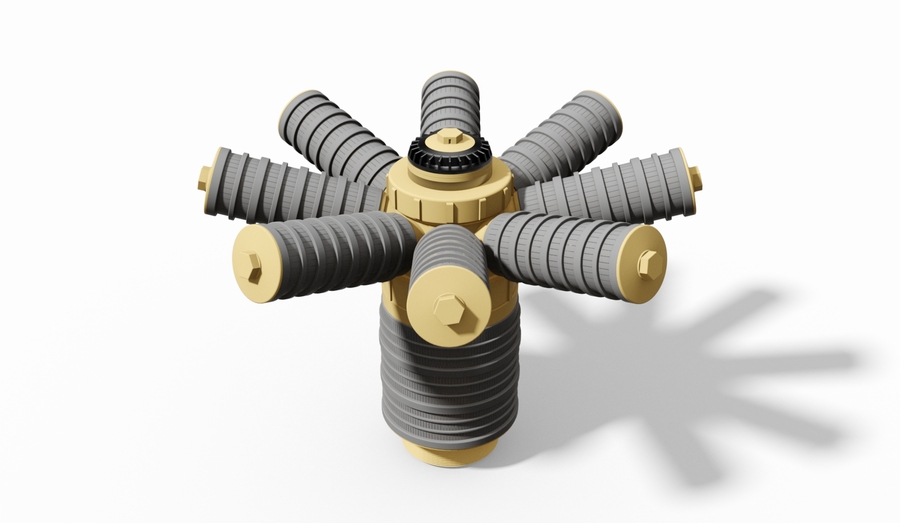

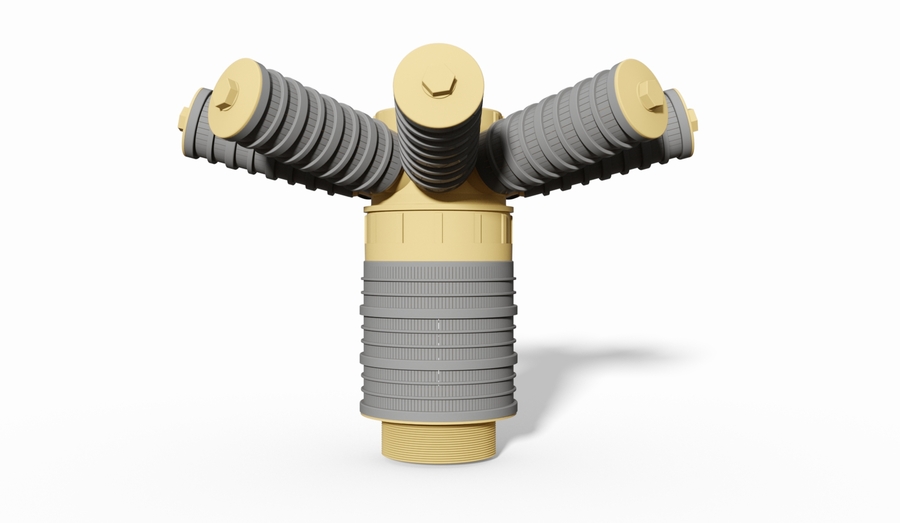

The Type SK8F Filter System, manufactured by KSH Germany, consists of eight Type A filter arms mounted at a 15° angle. This angled configuration enables the system to sit closely against the clapper base, ensuring optimized utilization of the filter medium. The louvre nozzles positioned on top provide residual ventilation and eliminate dead space above the centerpiece. The overall system diameter is determined by the length of the filter arms, and its special design enhances performance in containers with lower flange connections. Absorb NZ is the exclusive distributor of KSH filtration and drainage systems in New Zealand.
Features
Slot Size by Colour
- crop_square 0.2mm Slot Size - Ivory
- crop_square 0.3mm Slot Size - Green
- crop_square 0.35mm Slot Size - White
- crop_square 0.5mm Slot Size - Grey
- crop_square 0.7mm Slot Size - Yellow
- crop_square 0.8mm Slot Size - Blue
- crop_square 1.0mm Slot Size - Black
- crop_square 1.5mm Slot Size - Orange
- crop_square 2.0mm Slot Size - Green
