Type ANA3

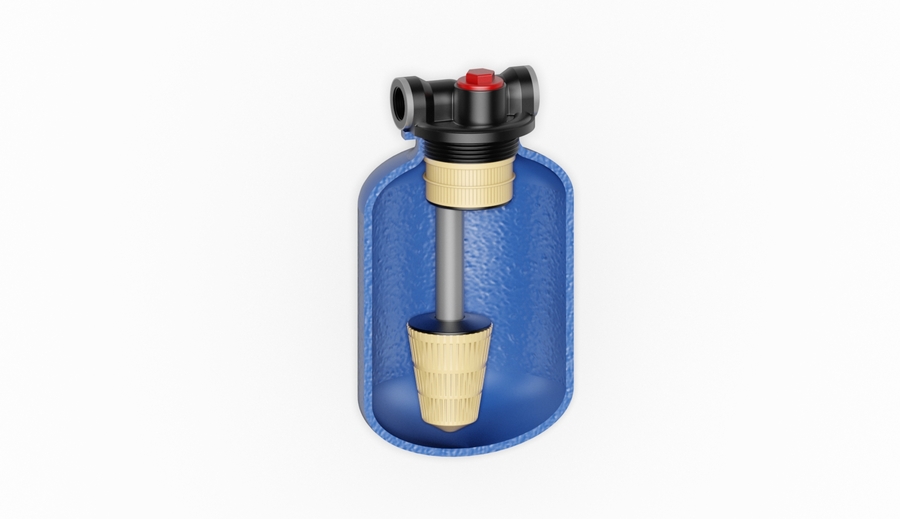

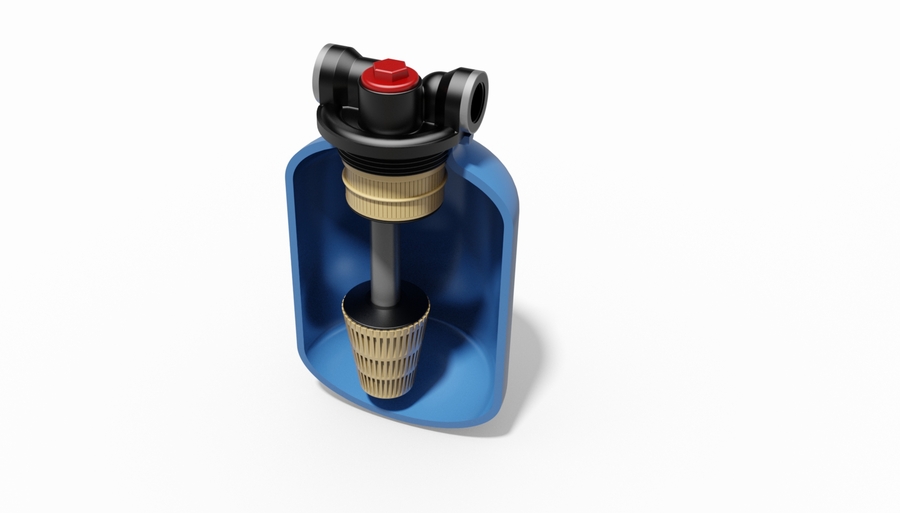

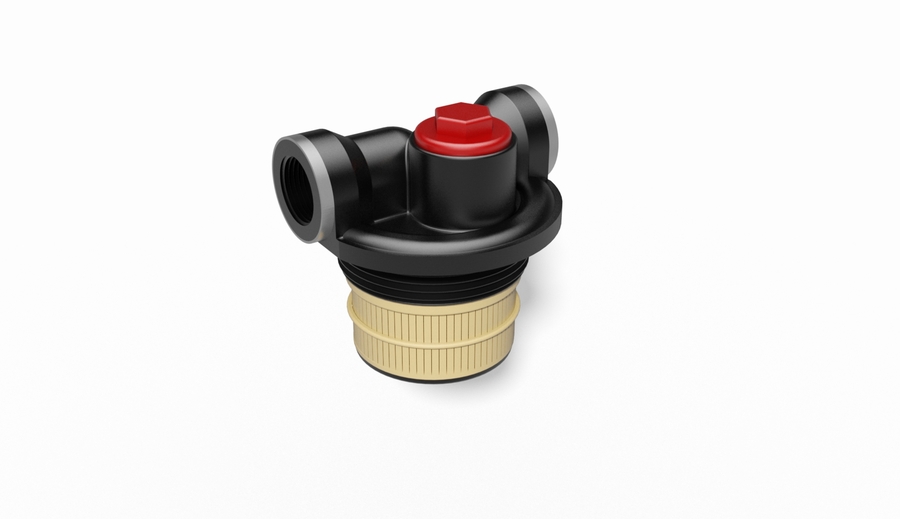

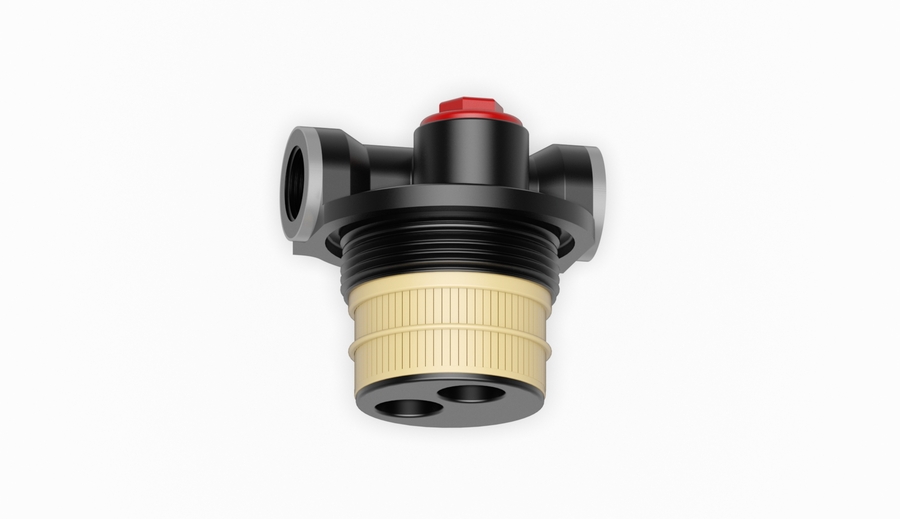

The Type ANA3 Connection Fitting, manufactured by KSH Germany, is designed for small pressure tanks with a 2.5" NPSM thread. It features G 3/4" threaded inlet and outlet connections, allowing the riser pipe to the lower nozzle to be inserted directly. Any residual air can be released via the top-mounted screw, ensuring safe and efficient operation. Absorb NZ is the exclusive New Zealand distributor of KSH filtration fittings and components.
Features
Slot Size by Colour
- crop_square 0.2mm Slot Size - Ivory
- crop_square 0.3mm Slot Size - Green
- crop_square 0.35mm Slot Size - White
- crop_square 0.5mm Slot Size - Grey
- crop_square 0.7mm Slot Size - Yellow
- crop_square 0.8mm Slot Size - Blue
- crop_square 1.0mm Slot Size - Black
- crop_square 1.5mm Slot Size - Orange
- crop_square 2.0mm Slot Size - Green
